This article presents an overview of new features added to Silvaco's Expert layout editor. Silvaco has taken a careful look at the real-world obstacles faced daily by semiconductor layout designers and design engineers. Silvaco has augmented Expert with features that dramatically increase flexibility and also help to reduce constraint violations and other roadblocks inherent to complex layout design.
Recent versions of Guardian DRC introduce operations that involve edge layers, either on input or on output. An edge layer is a layer that contains line segments that are edges or parts of edges of shapes from other layers. These edges have "inner" and "outer" surfaces defined according to the shape layers they were derived from.

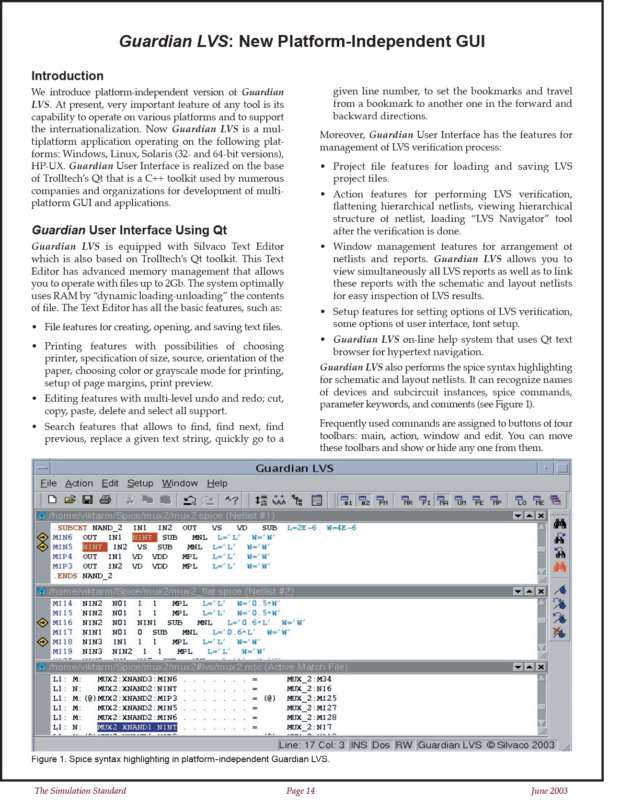

We introduce a platform-independent version of Guardian LVS. An important feature of any tool is its capability to operate on various platforms and to support internationalization. Now Guardian LVS is a multiplatform application operating on the following platforms: Windows, Linux and Solaris (32- and 64-bit versions).
Q: I have some trouble counting the number of in-stances in a layout using Expert. I have tried to use the Chip Rover feature
The application of Super Junction concepts to a low voltage power MOSFET is investigated. The body junction is modified with the addition of a high energy implant, resulting in an increased breakdown voltage. Simulations are used to quantify the relationship between dose and breakdown voltage, resulting in a predicted 35% Rds(on) reduction. This is confirmed through experiment, and a 19% reduction in Rds(on) is reported at 75 V. No change in device reliability is observed. This approach provides a simple means to reduce the on resistance of low voltage MOSFETs.
Silvaco’s Binary Collision Approximation (BCA) Monte- Carlo Implantation simulator closely replicates the physics of implantation by individually tracking implanted ions and their resulting interstitial and vacancy damage as the ions collide and interact with atoms in the substrate. The simulator then tracks subsequent ions, gradually building up the implanted ion concentration profile, until the required number of ions is reached.
This article will present two different ways to extract parasitics from an IC design: first using a full chip extraction tool HIPEX-RC based on geometrical information, then using a field solver based extraction tool CLEVER.
Q: Can ATLAS simulate an SEU event in 2D? To simulate a single event upset (SEU) is inherently a 3D problem because the alpha particle may strike the chip at any arbitrary angle to the chip surface. Silvaco’s 3D device simulator Device3D incorporates sophisticated algorithms to model this process accurately. However, it is possible to do this simulation in 2D with ATLAS but it should be remembered that this is only an approximation.
RPI VCSEL model was developed by Professor Michael Shur and his team from the Rensselaer Polytechnic Institute (RPI) [1]. A release of this model has been implemented within SmartSpice, and can be accessed by setting LEVEL=4 in the diode modelcard.
Berkeley University BSIM3v3 model is the industry-standard, physics-based, deep-submicron MOSFET model for digital and analog circuit designs. This makes BSIM3v3 model a good candidate for implementation in Verilog-A HDL for study purpose or customized model use.
